ANCHORS

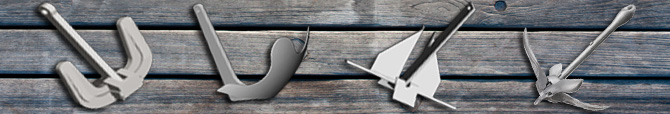

Nautilium manufactures anchors for vessels of up to 30 tonnes. Hot zinc-plated or stainless steel products for longer life in seawater. The range features grapnel anchors, easy to be used on dinghies, U or HALL type anchors, suitable for small vessels, larger Bruce anchors for rougher seas and higher sizes, and Danforth (Sand) type anchors specifically designed for sandy sea beds.
The anchors are made of Carbon Steel with Umbrella, Sand, Bruce, and Hall design and the surface is treated with hot dip galvanizing.
TECHNICAL SPECIFICATIONS UMBRELLA TYPE ANCHORS
|
Art. code
|
Weight (Kg)
|
Length (mm) |
Width (mm) |
ANCOMB025
|
2,500 |
335 |
300 |
| ANCOMB032 |
2,300 |
376 |
360 |
| ANCOMB040 |
4,000 |
421 |
400 |
| ANCOMB060 |
6,000 |
510 |
490 |
| ANCOMB080 |
8,000 |
525 |
585 |
| ANCOMB0100 |
10,000 |
575 |
620 |
| ANCOMB0120 |
12,000 |
615 |
630 |
ANCOMB0150
|
15,000
|
625 |
640 |
TECHNICAL SPECIFICATIONS SAND TYPE ANCHORS
|
| Art. code |
Weight (Kg)
|
Length (mm) |
ANCOSA20
|
2 |
350 |
ANCOSA40
|
4 |
420 |
| ANCOSA60 |
6 |
530 |
| ANCOSA100 |
10 |
655 |
| ANCOSA150 |
15 |
660 |
| ANCOSA200 |
20 |
670 |
ANCOSA300
|
30
|
900 |
TECHNICAL SPECIFICATIONS HALL TYPE ANCHORS
|
| Art. code |
Weight (Kg)
|
Length (mm) |
ANCHAL21
|
2,1 |
280 |
| ANCHAL28 |
2,8 |
305 |
| ANCHAL40 |
4,0 |
320 |
| ANCHAL60 |
6,0 |
380 |
| ANCHAL80 |
8,0 |
440 |
| ANCHAL91 |
9,1 |
500 |

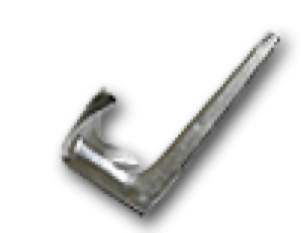

TECHNICAL SPECIFICATIONS BRUCE TYPE ANCHORS
|
| Art. code |
Weight (Kg)
|
Length (mm) |
| ANCBRU20 |
2,0 |
350 |
| ANCBRU35 |
3,5 |
410 |
| ANCBRU50 |
5,0 |
460 |
| ANCBRU75 |
7,5 |
530 |
| ANBRU100 |
10,0 |
585 |
| ANBRU150 |
15,0 |
650 |
| ANCBRU200 |
20,0 |
710 |
| ANCBRU300 |
30,0 |
780 |
